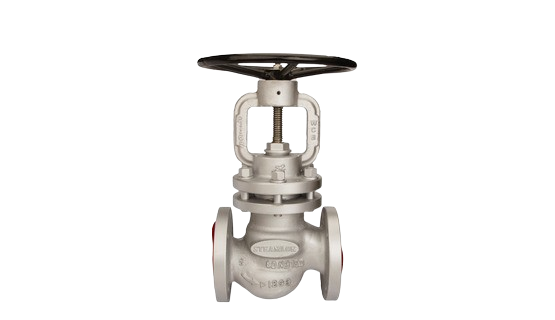

Piston Valves-slpv35

Piston valve is used to control the flow of fluid through pipes. Opening & closing of piston valves works on linear & rotary motion of piston within the body. Piston valves are seatless & glandless in design therefore they have some advantage over gate valves & globe valves. In piston valve seal rings are most important component for tight shut off. Piston vales are design with Class VI leak standard.

  • Unique sealing arrangement for extended life of valve
  • Wear & Erosion resistance for most of the fluids
  • Class VI leakage valve Standard
  • Use of Belleville washer to compensate thermal expansion
SIZE(NB) PMA TMA END CONNECTION
15, 20, 25, 40, 50, 65, 80, 100, 125, 150, 200 19.6 bar(g)
5.5 bar(g)
51.1 bar(g)
28.8 bar(g)		 -29 to 38°C
425°C
-29 to 38°C
425°C		 ASA 150
ASA 300
Brochue
Piston Valve

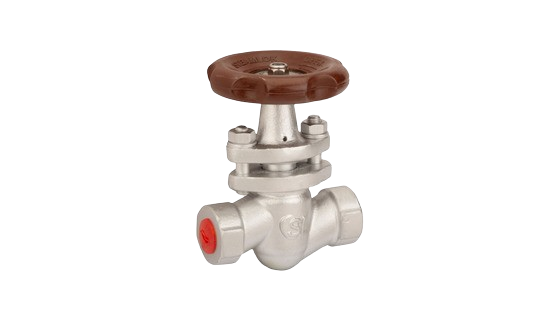

Piston Valves - Slpv25

Piston valve is used to control the flow of fluid through pipes. Opening & closing of piston valves works on linear & rotary motion of piston within the body. Piston valves are seatless & glandless in design therefore they have some advantage over gate valves & globe valves. In piston valve seal rings are most important component for tight shut off. Piston vales are design with Class VI leak standard.

  • Unique sealing arrangement for extended life of valve
  • Heat Resistance Hand Wheel, ease of Operation
  • Wear & Erosion resistance for most of the fluids
  • Class VI leakage valve Standard
  • Use of Belleville washer to compensate thermal expansion
SIZE(NB) MOC PMA TMA END CONNECTION
15, 20, 25, 32, 40 A105 20
31.6
76.4
13.8
34.7		 -29 to 38°C
425°C
-29 to 38°C
425°C		 Screwed
Socket Weld
Brochue
Piston Valve

Control Valve (prv/tcv)

  • Rangeability 1:40
  • Non Threaded Seat – Maintenance Friendly Avoiding Wear & Tear
  • Reversible Type Seat – Can be used Both Sides Ensuring Higher Life
  • Stuffing Box SS – Ensures Zero Leakage
  • Floating Ring Ensures Perfect Alignment of Plug & Seat
Piston Valve

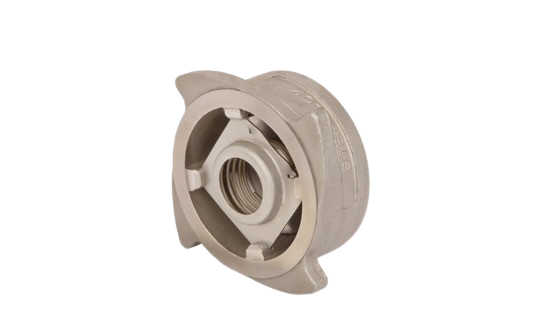

Disc Check Valve - Sldcv 77

  • MOC – SS316
  • Compact Design
  • Light Weight
  • Disc Check Valve must be Fitted Between Flanges as per Flow Direction Indicated on Body
SIZE(NB) PMA TMA END CONNECTION
15, 20, 25, 40, 50, 80, 100 49.6 bar(g)
38°C
29.1(g)		 425°C Between Two Flanges
ASA 150
