Description

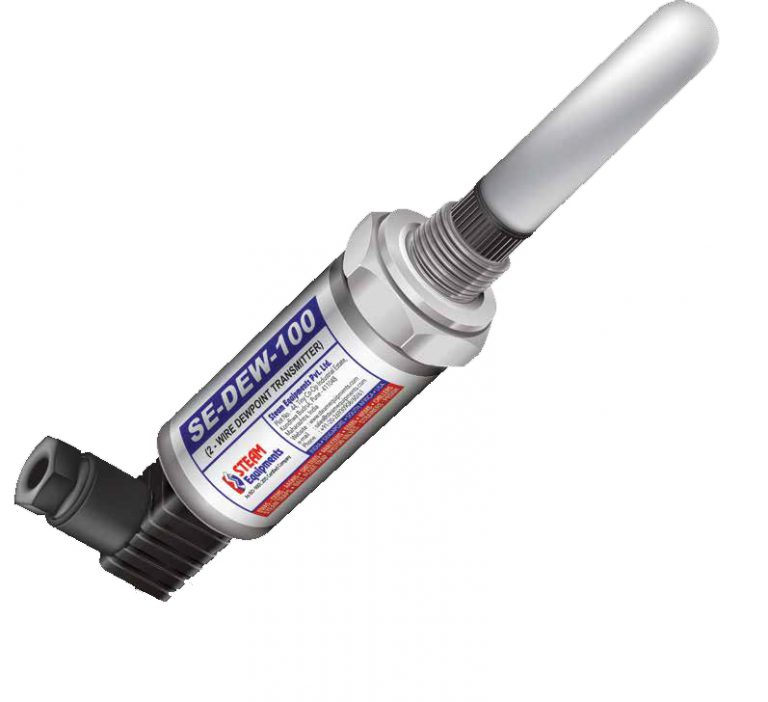

The SE - DEW - 100 Dewpoint Transmitter makes monitoring dewpoints as easy as measuring temperature or pressure, and can be instantly incorporated into air or gas measurement and control systems. We highly automated manufacturing, calibration and test processes make the SE - DEW - 100 not only a very rugged and reliable instrument but also very competitive in price. By taking advantage of sensor program, users can be assured that their process moisture measurement facility is never interrupted. It is very easy to install and maintain and comes with a full world-wide backup and service program.
Features
• 4-20 mA 2-wire loop powered connection
• Dewpoint OR parts per million (moisture content) in volume (PPM(V) measurements
• Accuracy ±2°Cdp
• Repeatability ±0.5°Cdp
• Dewpoint values traceable to international standards
• Excellent detector element protection
• Rugged stainless steel construction
• Fully interchangeable
Applications
- Compressed Air
- CNG Stations
- Moisture in Liquids
- Medical Gas
- Trace Moisture
Specifications:
- Measurement Range: -100 to +20°C dew point
- Accuracy: ±2°C dew point
- Response Time: 1 minute to T95 (dry to wet)
- Repeatability: 0.5°C dew point
- Calibration: Traceable 7-point calibration certificate
- Output Signal: 4–20 mA (2-wire)
- Supply Voltage: 8–36 V DC
- Current Consumption: 20 mA max
- Operating Temperature: -40 to +60°C
- Operating Humidity: 0–100% RH
- Flow Rate:
0.2 to 5 Nl/min (mounted in standard sampling block)
0 to 10 m/s (direct insertion)
- Temperature Coefficient: Temperature compensated across operating range
- Ingress Protection: IP65
- Housing Material: Stainless steel
- Dimensions: 114 mm length × 30 mm diameter
- Weight: 170 g
- Filter: 20 µm sintered guard
Ranges:
Range by sensor type:
XTR-100 -148° to 68°F (-100° to 20°C)
XTR-65 -85° to 68°F (-65° to 20°C)
Pressure Operating Range:
Standard 500 psi (34 Bar)
Optional 5,000 psi (340 Bar)
Readouts: Dewpoint in °F and °C, ppmv, H2O/m3, lbs H2O/mmscf
Sensor Type: High capacitance Al2O3 (HTF)
Accuracy: ± 5.5°F (± 3°C)
Repeatability: ± 0.9°F (± 0.5°C)
Capacitance: 15 nF to 200 nF
Temperature:
Sample: 22° to 122°F (-30° to 50°C)
Electronics: 14° to 122°F (-10° to 50°C)
Response Time:
For a step change from -40° to -76°F (-40° to -60°C)
63% in 90 seconds
90% in 450 seconds
Mechanical Connections:
14 mm x 1.25 mm threads and 3/4″ – 16 threads
Flow cell with 1/4″ tube fitting (option)
Electrical Connections: Female BNC connector
Intrinsically Safe Option: Class 1 & 2, Division 1, Groups A, B, C, D, E, F & G
(when used with optional safety barriers)
Display/Indicator: Back-lit LCD, 3.5 digits
Controls: 4 push buttons
Power: 100-240 VAC, 50/60 Hz
Output: 0/4-20 mA, RS-232
Sensor Cable: Coaxial cable (75Ω with capacitance of 50 pF/M)
Maximum cable length = 3,000 ft (914.4 m)
