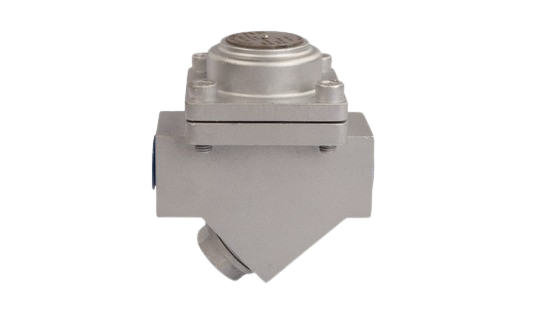

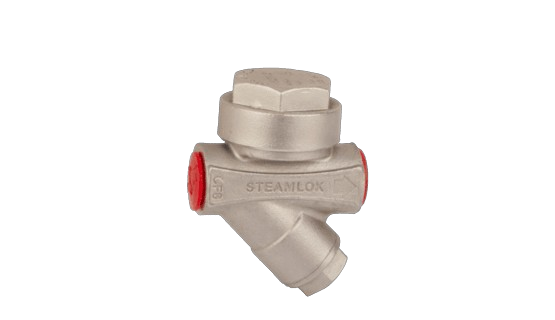

Thermodynamic Trap - Sltt 76
- Uniquely Designed Replaceable Seat & Disc
- Easy Maintainable Trap
- Stainless Steel Construction
- Vacuum Heat Treated Seat & Disc
- Functional Test - 100% on Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | SS 304 | 48.9 bar(g) | 538°C | Screwed, Socket Weld, ASA 150 / 300 / 600 |
Thermodynamic Trap – Sltt 87/88
- Replaceable Seat & Disc
- Easy Maintainable Trap
- Alloy Steel Construction
- Functional Test - 100% on Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | SS 304 | 48.9 bar(g) | 538°C | Screwed, Socket Weld, ASA 150 / 300 / 600 |
Thermodynamic Compact Module – Slcmtt35-c (15nb, 20nb, 25nb)
- Heat Resistant Handwheel
- Oxidation Free Heat Treatment (Vacuum) for Seat & Disc
- Unique Sealing Arrangement for Extended Valve Life
- Functional Test - 100% on Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | A105 | 76.6 / 10.5 / 29.3 bar(g) | 425°C / 250°C | Socket Weld ASA 150 / 300 |

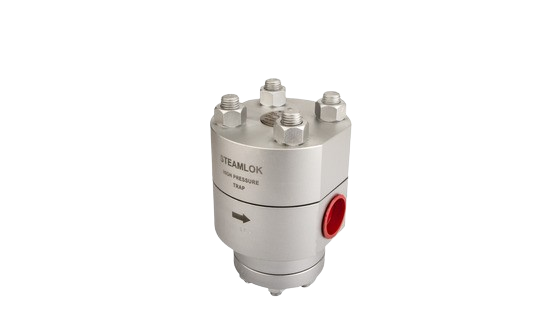

Thermodynamic Steam Trap – Sltt 85
- Maintainable Seat Design
- Vacuum Heat Treatment (Oxidation Free)
- Inbuilt Strainer for Easy Maintenance
- Functional Test - 100% on Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20 | A105 | 65 bar(g) | 510°C | Socket Weld, Butt Weld, ASA 600 / 1500 |

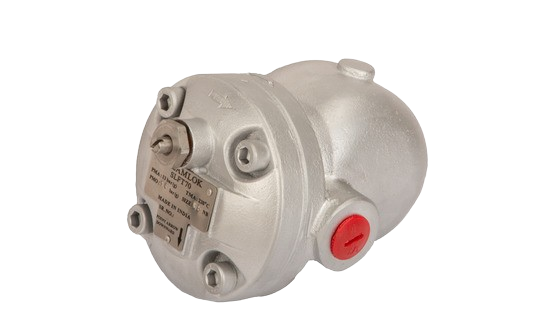

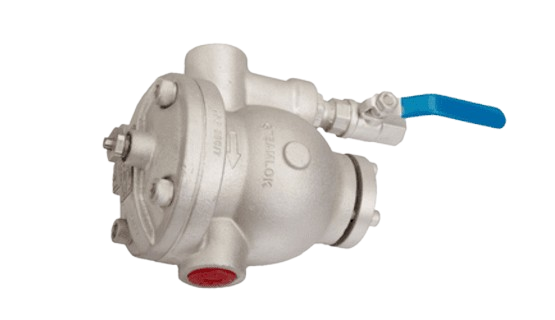

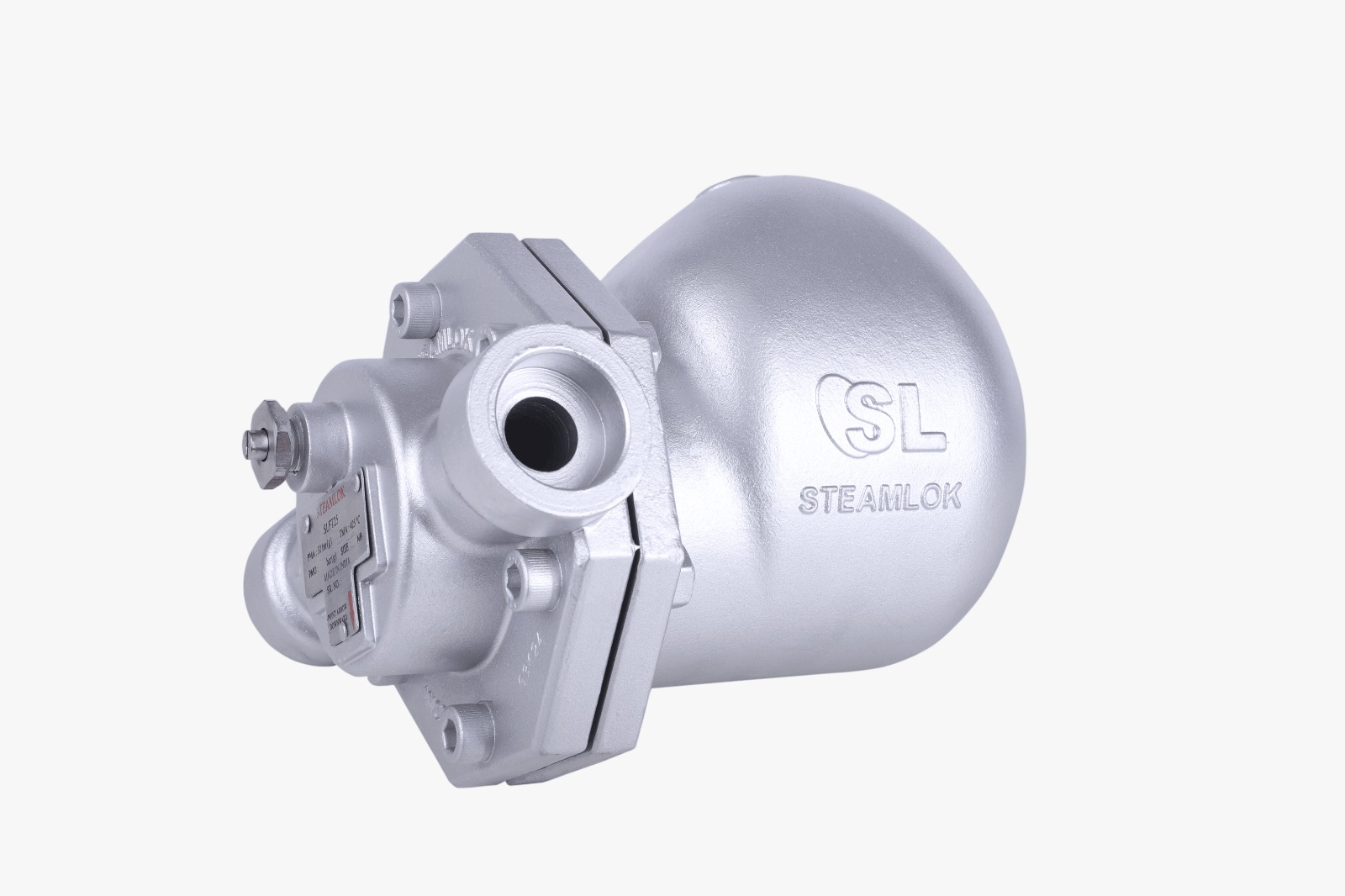

Ball Float Trap – Slft 75 (15nb, 20nb, 25nb)
A ball float steam trap is used on steam process lines to remove condensate formed during heating. It operates on the buoyancy principle—using the density difference of steam and water. The float rises and falls with condensate level, continuously discharging it while maintaining process temperature. It handles both moderate and high condensate loads efficiently.
- SG Iron Construction
- Maintainable Strainer Design
- Online Flushing Arrangement
- On-line Monitoring
- Self-Aligning SLR Design
- Functional Test – 100% On Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | SG Iron | 16 bar(g) at 100°C | 200°C | Screwed BSP / BSPT / NPT / Flanged |

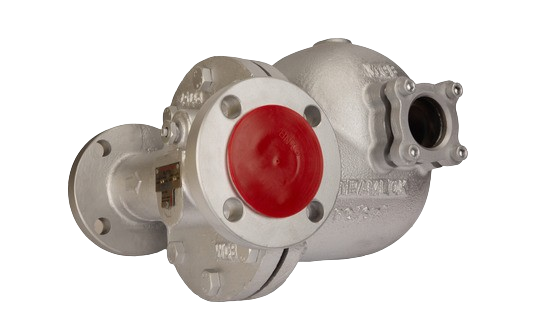

Ball Float Trap – Slft 75 (40nb, 50nb)
- Unique Rotating Ball Design for Zero Leak
- Self-Aligning Steam Lock Release (SLR)
- Sight Glass as Standard Feature
- Functional Test – 100% On Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 40, 50 | SG Iron | 16 bar(g) at 100°C | 200°C | Screwed / Flanged |
Ball Float Trap - Slft 25 (15nb, 20nb, 25nb)
- Eco Ball Float Steam Trap Design
- Cast Steel (WCB) Body
- Self-Aligning Steam Lock Release (SLR)
- Functional Test – 100% On Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | Cast Steel (WCB) | 51 bar(g) | 425°C | Screwed / Flanged / Socket Weld |
Ball Float Trap - Slft 25 (40nb, 50nb)
- Dual Sight Glass for Easy Monitoring
- Self-Aligning Steam Lock Release (SLR)
- Functional Test – 100% On Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 40,50 | Cast Steel (WCB) | 51 bar(g) | 425°C | Screwed / Flanged |
Eco Ft-70
- Unique Rotating Ball Design for Zero Leak
- Self-Aligning Steam Lock Release (SLR)
- Functional Test – 100% On Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | Cast Iron | 13 bar(g) | 200°C | Screwed / Flanged |

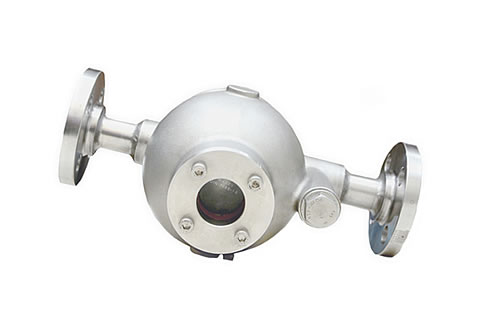

Ball Float Steam Trap – Slft 76 (15nb, 20nb, 25nb)
- Maintainable Strainer Design
- Sight Glass as Standard Feature
- Functional Test – 100% On Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | CF8 | 41 bar(g) | 538°C | Screwed / Flanged |

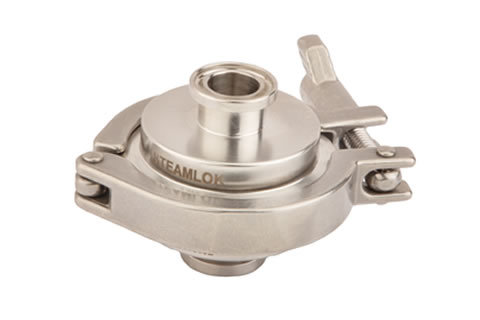

Thermostatic Pharma Trap - Slsst 79
- MOC for All Wetted Parts – SS316L
- Electro-Polished Internal Finish
- Self Drainable Body and Cap Design
- Functional Test - 100% on Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | SS316L | 10 bar(g) | 176°C | ASME BPE - Tri Clamp, Tube Weld |

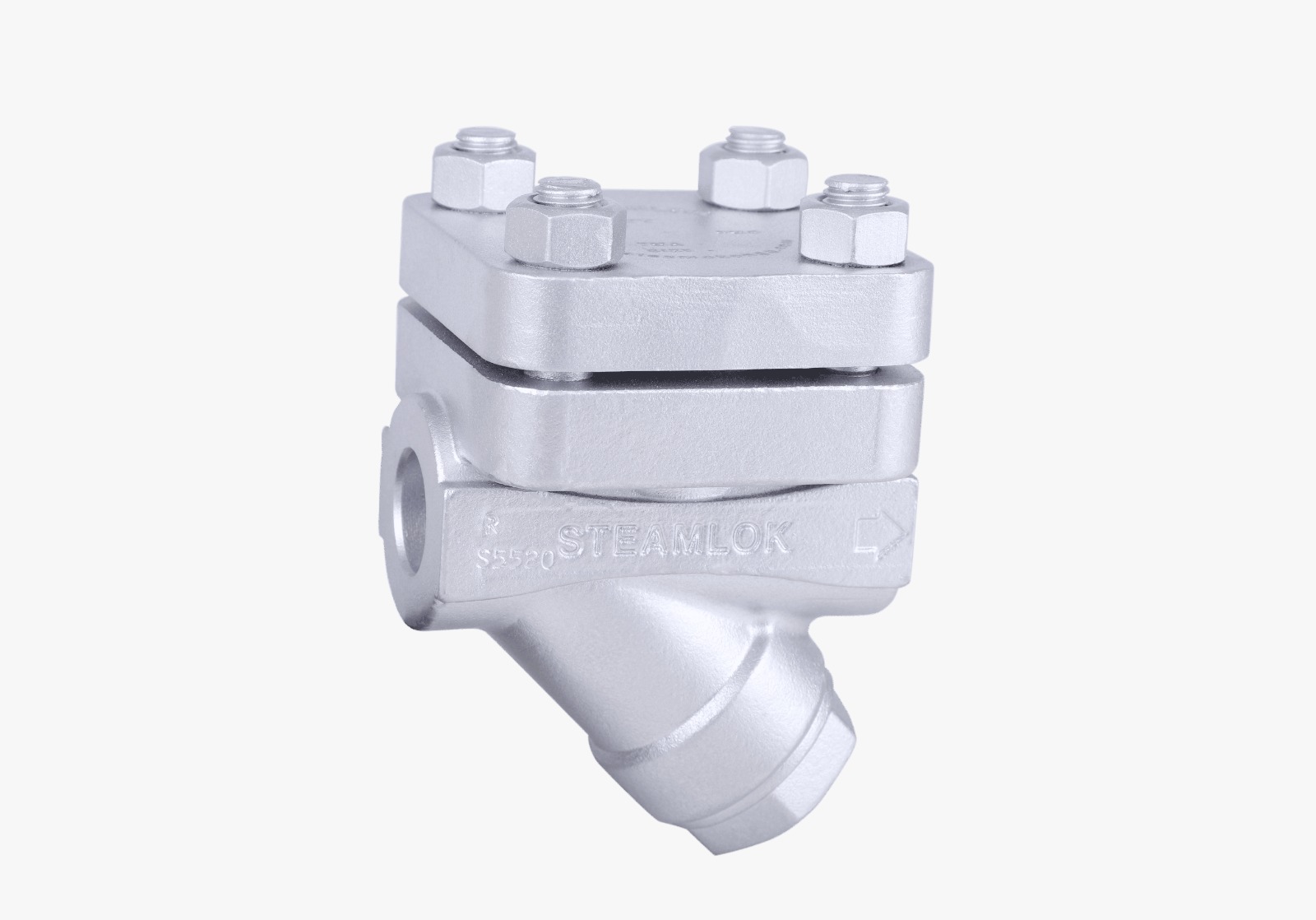

Thermostatic Steam Trap – Sltst 35
- Maintainable Strainer Design/li>
- Thermostatic Element for Wide Pressure Range
- Functional Test - 100% on Steam
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20 | A105 | 51 bar(g) | 425°C | Socket Weld, Butt Weld, ASA 600 / 1500 |

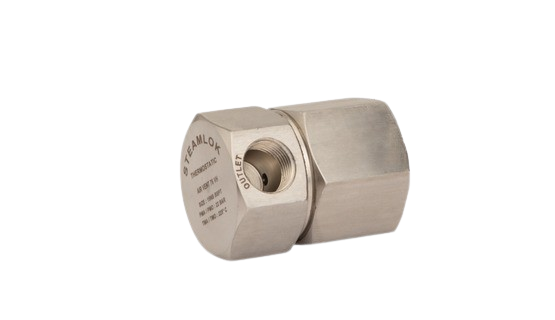

Thermostatic Air Vent – Slavt 76 Vh
- Corrosion Resistant Stainless Steel Construction with Inbuilt Filter
- Thermostatic Element Designed for Wide Pressure Range
- Functional Test - 100% on Steam
| SIZE(NB) | PMA | TMA | END CONNECTION |
|---|---|---|---|
| 15, 20 | 49 bar(g) | 538°C | BSP / BSPT / NPT |
